Tree-based Models

NBC Shows; Boston Housing Markets

Author

Byeong-Hak Choe

Published

April 14, 2025

Modified

April 19, 2025

Libraries and Modules

import pandas as pd
import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt

from sklearn.model_selection import train_test_split, KFold, cross_val_score
from sklearn.metrics import mean_squared_error

from sklearn.tree import DecisionTreeClassifier, DecisionTreeRegressor, plot_tree
from sklearn.ensemble import RandomForestRegressor
from sklearn.model_selection import GridSearchCV

import xgboost as xgb
from xgboost import XGBRegressor, plot_importance
from sklearn.inspection import PartialDependenceDisplay, plot_partial_dependence

NBC Data

nbc = pd.read_csv("https://bcdanl.github.io/data/nbc_show.csv")
demog = pd.read_csv("https://bcdanl.github.io/data/nbc_demog.csv")

nbc
Show Network PE GRP Genre Duration
0 Living with Ed HGTV 54.0000 151.0 Reality 30
1 Monarch Cove LIFE 64.6479 375.5 Drama/Adventure 60
2 Top Chef BRAVO 78.5980 808.5 Reality 60
3 Iron Chef America FOOD 62.5703 17.3 Reality 30
4 Trading Spaces: All Stars TLC 56.0000 44.1 Reality 60
5 Lisa Williams: Life Among the Dead LIFE 56.2056 382.6 Reality 60
6 Project Runway BRAVO 83.4243 826.2 Reality 60
7 Next MTV 30.0000 7.5 Reality 30
8 House Hunters HGTV 60.5455 320.8 Reality 30
9 My Super Sweet 16 MTV 47.9324 213.7 Reality 30
10 What Not to Wear TLC 76.5668 508.9 Reality 60
11 Real World XVIII Denver Launch MTV 76.0000 629.8 Reality 30
12 American Chopper DSC 61.2437 495.5 Reality 60
13 Monk USA 81.2222 1994.3 Drama/Adventure 60
14 The Closer TNT 77.5441 2300.3 Drama/Adventure 60
15 Veronica Mars CW 79.7387 238.9 Drama/Adventure 60
16 Supernatural CW 79.6464 232.4 Drama/Adventure 60
17 Smallville CW 80.1307 406.0 Drama/Adventure 60
18 Cops FOX 64.2912 113.5 Reality 30
19 Friday Night Lights NBC 73.1257 1403.6 Drama/Adventure 60
20 Close to Home CBS 73.3197 675.1 Drama/Adventure 60
21 Las Vegas NBC 78.1208 348.8 Drama/Adventure 60
22 30 Rock NBC 82.5494 780.5 Situation Comedy 30
23 America's Next Top Model CW 72.6376 243.4 Reality 60
24 The War at Home FOX 81.6624 121.5 Situation Comedy 30
25 Law and Order: Criminal Intent NBC 71.0557 1148.6 Drama/Adventure 60
26 The Apprentice: Los Angeles NBC 79.5046 485.1 Reality 30
27 The Unit CBS 80.2456 1044.8 Drama/Adventure 60
28 Cold Case CBS 78.1187 1497.2 Drama/Adventure 60
29 Bones FOX 78.9045 893.6 Drama/Adventure 60
30 The Biggest Loser NBC 64.3575 647.9 Reality 60
31 Shark CBS 75.5916 1738.0 Drama/Adventure 60
32 My Name is Earl NBC 83.2328 647.9 Situation Comedy 30
33 Ugly Betty ABC 74.7037 1356.0 Drama/Adventure 60
34 Two and a Half Men CBS 86.7397 972.5 Situation Comedy 30
35 Lost ABC 89.2948 1593.1 Drama/Adventure 60
36 Dancing with the Stars ABC 67.1338 920.7 Reality 30
37 CSI: Crime Scene Investigation CBS 78.8984 1815.8 Drama/Adventure 60
38 Heroes NBC 84.0252 2773.8 Drama/Adventure 60
39 Grey's Anatomy ABC 83.7930 1781.5 Drama/Adventure 60
# Define custom colors for each genre
custom_palette = {
    "Reality": "red",
    "Drama/Adventure": "blue",
    "Situation Comedy": "green"
}

# Plot
sns.lmplot(
    data=nbc, x="GRP", y="PE", hue="Genre",
    palette=custom_palette,
    ci=None, aspect=1.2, height=6,
    markers="o",
    scatter_kws={"s": 50},
    line_kws={"linewidth": 2}
)

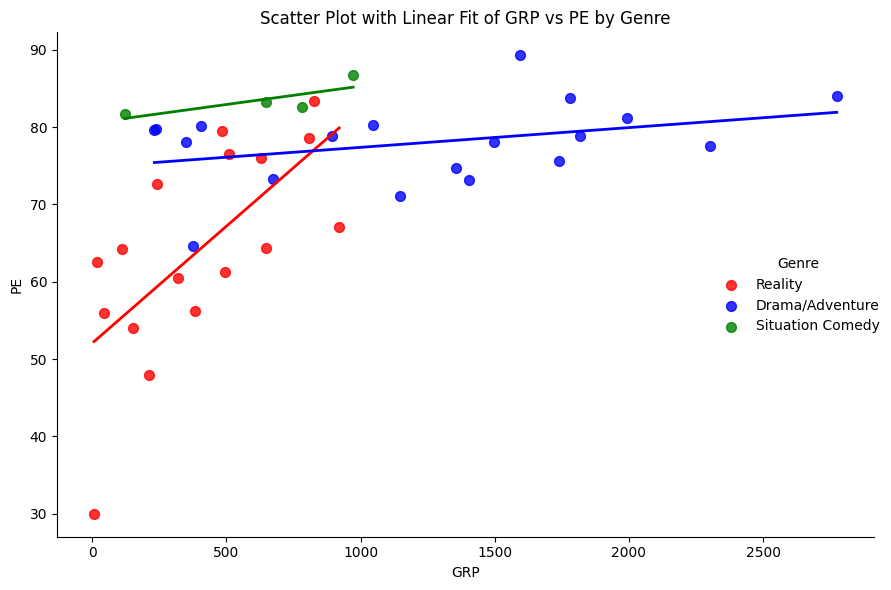

plt.title("Scatter Plot with Linear Fit of GRP vs PE by Genre")
plt.xlabel("GRP")
plt.ylabel("PE")
plt.tight_layout()
plt.show()

demog
Show TERRITORY.EAST.CENTRAL TERRITORY.NORTHEAST TERRITORY.PACIFIC TERRITORY.SOUTHEAST TERRITORY.SOUTHWEST TERRITORY.WEST.CENTRAL COUNTY.SIZE.A COUNTY.SIZE.B COUNTY.SIZE.C ... FEMALE.HOH INCOME.30.74K. INCOME.75K. HISPANIC.ORIGIN NON.HISPANIC.ORIGIN HOME.IS.OWNED HOME.IS.RENTED PC.NON.OWNER PC.OWNER.WITH.INTERNET.ACCESS PC.OWNER.WITHOUT.INTERNET.ACCESS
0 Living with Ed 6.1611 19.0758 28.7915 17.5355 7.7014 20.7346 48.6967 31.3981 13.3886 ... 61.6114 31.0427 56.8720 9.5972 90.1659 76.8957 22.9858 12.5592 77.9621 9.3602
1 Monarch Cove 10.3289 14.0132 11.1184 37.1053 15.7237 11.6447 35.1316 32.2368 15.9211 ... 61.3158 43.5526 20.4605 12.3026 87.6974 71.5132 28.6184 21.8421 62.9605 15.1974
2 Top Chef 7.5190 23.8271 19.6066 17.8652 14.1160 16.9637 48.2483 31.3255 13.3579 ... 51.3829 39.0699 44.0484 11.1248 88.8547 65.7242 34.2348 13.5218 80.1475 6.3716
3 Iron Chef America 12.8118 25.1617 21.7123 20.1879 10.5482 9.6397 46.9664 30.3819 12.5038 ... 48.7989 44.3640 44.6104 8.7003 91.2997 74.8075 25.1925 8.6849 84.7244 6.5445
4 Trading Spaces: All Stars 11.9926 15.1292 17.1587 16.7897 16.2362 22.6937 28.5978 37.6384 16.7897 ... 58.1181 37.2694 47.0480 9.9631 90.2214 75.0923 24.9077 11.9926 85.9779 2.0295
5 Lisa Williams: Life Among the Dead 17.3210 23.3256 9.4688 26.5589 13.3949 9.9307 37.1824 23.5566 20.5543 ... 63.9723 44.5727 24.9423 7.8522 92.1478 69.2841 30.7159 26.3279 64.8961 8.7760
6 Project Runway 10.7261 21.5272 20.2820 20.1620 14.7165 12.5563 50.0000 32.9133 12.6613 ... 54.1704 38.9439 45.4845 9.1509 90.8791 66.0966 33.9034 7.2607 85.4185 7.3207
7 Next 11.6279 27.8013 15.8562 22.4101 11.6279 10.6765 48.3087 22.3044 13.5307 ... 52.2199 39.8520 26.5328 19.5560 80.3383 53.3827 46.5116 13.4249 71.7759 14.7992
8 House Hunters 14.9860 22.4790 12.0448 22.8992 12.2549 15.2661 39.7759 30.6723 14.0056 ... 52.1709 42.6471 47.4790 7.8431 92.0868 80.8824 19.1176 7.2129 84.1737 8.6134
9 My Super Sweet 16 11.6120 22.5410 16.8033 25.4098 11.4754 12.0219 41.3934 30.6011 13.1148 ... 54.3716 43.5792 29.7814 15.8470 84.1530 53.9617 45.9016 13.5246 72.9508 13.3880
10 What Not to Wear 15.4419 18.4186 17.1163 24.4651 11.7209 13.0233 35.3488 38.6047 12.6512 ... 49.8605 46.8837 42.3256 8.0930 91.8140 78.0465 21.9535 7.1628 86.3256 6.6047
11 Real World XVIII Denver Launch 12.7871 21.6692 17.9556 21.4395 10.4135 15.7734 39.0123 32.0061 14.8928 ... 51.7994 43.4533 37.2511 13.8591 86.1792 61.1409 38.8974 15.0459 78.4074 6.6233
12 American Chopper 15.0784 16.8361 13.0877 22.6387 13.2994 19.1021 28.3566 31.5544 15.1419 ... 43.1385 54.3202 28.9496 9.3816 90.6607 77.0224 22.9564 19.7586 72.5752 7.6874
13 Monk 13.6828 25.8147 19.9450 17.8543 9.7762 12.8779 36.0031 30.5065 17.0887 ... 47.2124 45.5438 34.6093 4.5347 95.4653 74.7154 25.2748 11.5823 80.4967 7.9211
14 The Closer 13.7866 22.6900 10.8188 23.8687 14.9442 13.8497 39.7390 31.2355 12.4816 ... 51.5260 45.2326 36.9185 4.7569 95.2642 75.3947 24.6264 14.0181 80.5094 5.4725
15 Veronica Mars 11.2460 17.5080 22.6837 25.4313 7.9233 15.2077 42.6198 38.5942 8.2428 ... 55.3355 40.5112 28.3706 5.9425 94.1214 60.1278 39.8722 22.7476 70.5431 6.7093
16 Supernatural 9.1912 20.1238 16.4087 25.4837 15.6734 13.0998 43.1502 32.4690 10.5263 ... 56.6950 37.6935 20.4334 9.0557 90.9636 57.5658 42.4342 27.0704 59.3460 13.5642
17 Smallville 9.4783 19.7617 18.0764 22.0374 15.8222 14.8132 45.6097 33.2117 8.7806 ... 50.6441 40.0923 20.1052 9.6823 90.2963 55.9360 44.0425 28.3705 59.4354 12.1726
18 Cops 14.6683 15.6815 20.3860 22.4487 10.3860 16.4415 35.6333 34.4150 15.8745 ... 48.8179 39.5778 26.9240 10.6273 89.3848 63.3414 36.6586 27.8046 60.5308 11.6526
19 Friday Night Lights 14.7812 18.2799 14.4947 21.2361 11.4775 19.7306 35.1457 32.6100 16.1526 ... 44.2521 40.8875 42.7953 5.8332 94.1790 72.4674 27.5326 13.3914 78.8065 7.8142
20 Close to Home 15.3736 17.4558 14.7461 25.6703 14.0901 12.6925 31.5174 32.6868 17.7695 ... 53.9361 44.2384 28.4370 5.6475 94.3811 72.2191 27.7809 19.3098 71.0211 9.6977
21 Las Vegas 15.5033 19.1895 20.9673 17.6993 9.9346 16.6797 37.0458 34.8235 13.9085 ... 48.2353 41.8562 39.5817 6.6928 93.3072 74.0131 25.9608 15.0850 76.4706 8.4183
22 30 Rock 14.0711 21.8145 18.6362 21.2944 7.7723 16.4114 40.2774 36.3479 13.2621 ... 44.5825 40.2774 43.9757 5.2297 94.7703 69.7486 30.2514 10.0549 82.6062 7.3389
23 America's Next Top Model 9.8586 25.6914 19.1049 20.7093 10.4919 14.1229 51.5516 29.4701 10.3652 ... 55.7526 41.1020 30.6945 10.9985 89.0015 52.5860 47.3929 20.0127 70.3399 9.6475
24 The War at Home 19.9841 15.7374 12.6535 18.3302 11.5124 21.7969 40.2643 29.6909 16.3585 ... 43.1027 43.9405 32.9409 8.1251 91.8677 67.8608 32.1392 22.4758 67.4202 10.0896
25 Law and Order: Criminal Intent 15.9262 19.8812 19.5525 19.6056 10.5079 14.5372 39.3702 31.4389 16.5624 ... 51.9139 36.0725 42.4027 5.4713 94.5287 69.6003 30.4210 16.2019 73.2054 10.5821
26 The Apprentice: Los Angeles 16.3073 17.4851 19.8949 17.0683 7.6826 21.5619 42.1453 31.2919 15.4557 ... 44.0478 40.5146 51.3136 6.7222 93.2596 76.0101 23.9899 5.7982 88.1681 6.0337
27 The Unit 15.9171 18.1988 15.1711 22.2137 12.0338 16.4436 29.5524 35.8820 16.9373 ... 43.9118 43.7363 38.3172 3.8504 96.1496 76.8978 23.0913 14.6336 76.8868 8.4906
28 Cold Case 15.3493 22.2607 15.2591 22.9751 11.5289 12.6119 33.7369 30.4881 18.8539 ... 50.8837 42.4457 32.8570 4.4221 95.5779 72.1366 27.8559 20.1775 69.7827 10.0323
29 Bones 14.2903 18.6766 20.5336 23.4258 9.3810 13.7033 40.9072 30.8431 16.3501 ... 56.0939 43.6073 30.0107 6.8623 93.1270 68.9328 31.0779 22.7962 67.0864 10.1174
30 The Biggest Loser 15.2107 17.5580 18.2975 20.7223 12.2356 15.9931 33.4738 32.0464 19.3465 ... 51.6337 42.3302 42.2614 8.5469 91.4617 77.1883 22.8117 11.3929 79.6131 9.0112
31 Shark 13.9930 21.9133 17.3678 21.8493 12.5937 12.2919 35.2296 30.4920 16.3435 ... 50.5853 41.9609 35.9338 4.6186 95.3905 74.0168 25.9832 17.4776 74.6204 7.9020
32 My Name is Earl 15.8970 16.8244 17.6003 22.1991 9.8600 17.6003 34.5382 35.9008 14.4209 ... 45.9311 40.4996 42.6571 4.7691 95.2309 73.5428 26.4572 11.8660 80.7721 7.3429
33 Ugly Betty 12.9309 22.8937 17.8491 16.2319 13.8027 16.2785 46.6325 26.4941 13.8826 ... 53.6869 40.8359 40.6828 11.3337 88.6663 74.0716 25.9151 13.2504 78.5572 8.1991
34 Two and a Half Men 16.9849 22.1944 12.8770 19.7220 10.9000 17.3169 32.8251 33.8737 16.4125 ... 47.9148 40.8341 41.3777 4.9690 95.0262 75.8767 24.1233 16.3885 75.3668 8.2399
35 Lost 11.7621 22.6809 20.8833 19.0968 10.8966 14.6804 43.9525 34.0657 11.8509 ... 45.5726 38.4376 48.3245 5.9032 94.0968 76.8420 23.1580 8.2889 84.5539 7.1571
36 Dancing with the Stars 14.0218 21.4514 17.4641 19.2451 13.6231 14.1813 41.7597 33.3200 12.3870 ... 50.1728 40.9490 43.8596 10.3801 89.6199 77.0601 22.9399 12.1212 79.5986 8.2802
37 CSI: Crime Scene Investigation 15.0171 18.5547 18.8807 20.0692 13.0774 14.3970 32.3635 32.0335 18.4752 ... 49.9126 44.0337 36.7001 5.1355 94.8684 74.9304 25.0696 13.9916 77.3233 8.6851
38 Heroes 12.0194 20.4935 18.6965 21.3497 10.5153 16.9157 38.1938 32.7115 15.9749 ... 48.1883 41.9279 36.5205 7.2989 92.7011 68.5484 31.4582 15.8967 74.5125 9.5973
39 Grey's Anatomy 14.6116 21.2043 16.3938 18.9913 11.6822 17.1234 40.4044 33.6315 14.0402 ... 52.0207 40.9779 44.0084 6.4608 93.5370 75.4269 24.5731 10.8296 81.9844 7.1838

40 rows × 57 columns

demog.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 40 entries, 0 to 39
Data columns (total 57 columns):
 #   Column                            Non-Null Count  Dtype
---  ------                            --------------  -----
 0   Show                              40 non-null     object
 1   TERRITORY.EAST.CENTRAL            40 non-null     float64
 2   TERRITORY.NORTHEAST               40 non-null     float64
 3   TERRITORY.PACIFIC                 40 non-null     float64
 4   TERRITORY.SOUTHEAST               40 non-null     float64
 5   TERRITORY.SOUTHWEST               40 non-null     float64
 6   TERRITORY.WEST.CENTRAL            40 non-null     float64
 7   COUNTY.SIZE.A                     40 non-null     float64
 8   COUNTY.SIZE.B                     40 non-null     float64
 9   COUNTY.SIZE.C                     40 non-null     float64
 10  COUNTY.SIZE.D                     40 non-null     float64
 11  WIRED.CABLE.W.PAY                 40 non-null     float64
 12  WIRED.CABLE.W.O.PAY               40 non-null     float64
 13  DBS.OWNER                         40 non-null     float64
 14  BROADCAST.ONLY                    40 non-null     float64
 15  VIDEO.GAME.OWNER                  40 non-null     float64
 16  DVD.OWNER                         40 non-null     float64
 17  VCR.OWNER                         40 non-null     float64
 18  X1.TV.SET                         40 non-null     float64
 19  X2.TV.SETS                        40 non-null     float64
 20  X3.TV.SETS                        40 non-null     float64
 21  X4..TV.SETS                       40 non-null     float64
 22  X1.PERSON                         40 non-null     float64
 23  X2.PERSONS                        40 non-null     float64
 24  X3.PERSONS                        40 non-null     float64
 25  X4..PERSONS                       40 non-null     float64
 26  HOH..25                           40 non-null     float64
 27  HOH.25.34                         40 non-null     float64
 28  HOH.35.44                         40 non-null     float64
 29  HOH.45.54                         40 non-null     float64
 30  HOH.55.64                         40 non-null     float64
 31  HOH.65.                           40 non-null     float64
 32  X1.3.YRS.COLLEGE                  40 non-null     float64
 33  X4..YRS.COLLEGE                   40 non-null     float64
 34  X4.YRS.H.S.                       40 non-null     float64
 35  WHITE.COLLAR                      40 non-null     float64
 36  BLUE.COLLAR                       40 non-null     float64
 37  NOT.IN.LABOR.FORCE                40 non-null     float64
 38  BLACK                             40 non-null     float64
 39  WHITE                             40 non-null     float64
 40  OTHER                             40 non-null     float64
 41  ANY.CHILDREN.2.5                  40 non-null     float64
 42  ANY.CHILDREN.6.11                 40 non-null     float64
 43  ANY.CHILDREN.12.17                40 non-null     float64
 44  ANY.CATS                          40 non-null     float64
 45  ANY.DOGS                          40 non-null     float64
 46  MALE.HOH                          40 non-null     float64
 47  FEMALE.HOH                        40 non-null     float64
 48  INCOME.30.74K.                    40 non-null     float64
 49  INCOME.75K.                       40 non-null     float64
 50  HISPANIC.ORIGIN                   40 non-null     float64
 51  NON.HISPANIC.ORIGIN               40 non-null     float64
 52  HOME.IS.OWNED                     40 non-null     float64
 53  HOME.IS.RENTED                    40 non-null     float64
 54  PC.NON.OWNER                      40 non-null     float64
 55  PC.OWNER.WITH.INTERNET.ACCESS     40 non-null     float64
 56  PC.OWNER.WITHOUT.INTERNET.ACCESS  40 non-null     float64
dtypes: float64(56), object(1)
memory usage: 17.9+ KB

Decision Tree

Classification Tree

# Use the demographic variables (excluding the first column) as features
X = demog.iloc[:, 1:]
y = nbc["Genre"]

# Build the classification tree.
# The 'mincut = 1' in R is analogous to a very low min_samples_split in scikit-learn (default=2).
clf = DecisionTreeClassifier(min_samples_split=2, random_state=42)
clf.fit(X, y)

# Generate predictions for the 'Genre' and store them in the nbc DataFrame
nbc["genrepred"] = clf.predict(X)

# Plot the decision tree
plt.figure(figsize=(12, 8))
plot_tree(clf, feature_names=X.columns, class_names=clf.classes_, filled=True, rounded=True)
plt.title("Classification Tree for Genre")
plt.show()

Regression Tree

# Prepare the predictor set and target variable.
# We want to model: PE ~ Genre + GRP using all columns except the first.
# Here, we select the 'Genre' and 'GRP' columns as predictors and 'PE' as the target.
X = nbc[['Genre', 'GRP']]
y = nbc['PE']

# If 'Genre' is categorical, convert it to dummy variables.
# This is necessary because scikit-learn models require numerical inputs.
X = pd.get_dummies(X, columns=['Genre'], drop_first=True)
# Build and fit the regression tree.
reg_tree = DecisionTreeRegressor(max_depth=3, min_samples_split=2, random_state=42)
reg_tree.fit(X, y)

# Generate predictions for PE and store them in the DataFrame.
nbc['PEpred'] = reg_tree.predict(X)

# Plot the regression tree.
plt.figure(figsize=(16, 10), dpi = 300)
plot_tree(reg_tree, feature_names=X.columns, filled=True, rounded=True)
plt.title("Regression Tree for PE")
plt.show()

Boston Housing Data

# -------------------------------
# Data Loading and Visualization
# -------------------------------

# Load the Boston (demographics) data from URL.
boston = pd.read_csv("https://bcdanl.github.io/data/boston.csv")
boston

# boston_vis = boston.melt(id_vars=["medv"], var_name="var", value_name="value")
# Exclude the 'chas' variable from visualizations
# boston_vis = boston_vis[boston_vis['var'] != "chas"]

# Scatter plots with smoothing (using lowess)
# sns.lmplot(data=boston_vis, x="value", y="medv", col="var",
           # col_wrap=3, height=4, scatter_kws={"s":10}, lowess=True)
# plt.show()

# Boxplot for each variable
# sns.catplot(data=boston_vis, y="value", col="var", kind="box", col_wrap=3)
# plt.show()

# Histogram for each variable
# g = sns.FacetGrid(boston_vis, col="var", col_wrap=3, height=4)
# g.map(plt.hist, "value", bins=20)
# plt.show()
crim zn indus chas nox rm age dis rad tax ptratio black lstat medv
0 0.00632 18.0 2.31 0 0.538 6.575 65.2 4.0900 1 296 15.3 396.90 4.98 24.0
1 0.02731 0.0 7.07 0 0.469 6.421 78.9 4.9671 2 242 17.8 396.90 9.14 21.6
2 0.02729 0.0 7.07 0 0.469 7.185 61.1 4.9671 2 242 17.8 392.83 4.03 34.7
3 0.03237 0.0 2.18 0 0.458 6.998 45.8 6.0622 3 222 18.7 394.63 2.94 33.4
4 0.06905 0.0 2.18 0 0.458 7.147 54.2 6.0622 3 222 18.7 396.90 5.33 36.2
... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
501 0.06263 0.0 11.93 0 0.573 6.593 69.1 2.4786 1 273 21.0 391.99 9.67 22.4
502 0.04527 0.0 11.93 0 0.573 6.120 76.7 2.2875 1 273 21.0 396.90 9.08 20.6
503 0.06076 0.0 11.93 0 0.573 6.976 91.0 2.1675 1 273 21.0 396.90 5.64 23.9
504 0.10959 0.0 11.93 0 0.573 6.794 89.3 2.3889 1 273 21.0 393.45 6.48 22.0
505 0.04741 0.0 11.93 0 0.573 6.030 80.8 2.5050 1 273 21.0 396.90 7.88 11.9

506 rows × 14 columns

  • crim
    • per capita crime rate by town.
  • zn
    • proportion of residential land zoned for lots over 25,000 sq.ft.
  • indus
    • proportion of non-retail business acres per town.
  • chas
    • Charles River dummy variable (= 1 if tract bounds river; 0 otherwise).
  • nox
    • nitrogen oxides concentration (parts per 10 million).
  • rm
    • average number of rooms per dwelling.
  • age
    • proportion of owner-occupied units built prior to 1940.
  • dis
    • weighted mean of distances to five Boston employment centres.
  • rad
    • index of accessibility to radial highways.
  • tax
    • full-value property-tax rate per $10,000.
  • ptratio
    • pupil-teacher ratio by town.
  • black
    • \(1000\times (Bk - 0.63)^2\), where \(Bk\) is the proportion of blacks by town.
  • lstat
    • lower socioeconomic status of the population (percent).
  • medv
    • median value of owner-occupied homes in $1000s.

Splitting Data into Training and Testing

# Set a random seed for reproducibility (like R's set.seed)
np.random.seed(42120532)
train, test = train_test_split(boston, test_size=0.20, random_state=42120532)

X_train = train.drop(columns=["medv"])
y_train = train["medv"]

X_test = test.drop(columns=["medv"])
y_test = test["medv"]

Prunning

Build the Regression Tree on the Training Data

# In scikit-learn, we can use min_impurity_decrease=0.005 for a similar effect.
tree_model = DecisionTreeRegressor(min_impurity_decrease=0.005, random_state=42)
# Fit the model using all predictors (all columns except 'medv')
tree_model.fit(X_train, y_train)


# Predict on training and test sets
y_train_pred = tree_model.predict(X_train)
y_test_pred = tree_model.predict(X_test)

# Calculate MSE
mse_train = mean_squared_error(y_train, y_train_pred)
mse_test = mean_squared_error(y_test, y_test_pred)

# Print the results
print(f"Training MSE: {mse_train:.3f}")
print(f"Test MSE: {mse_test:.3f}")

# Plot the initial regression tree
plt.figure(figsize=(12, 8))
plot_tree(tree_model, feature_names=X_train.columns, filled=True, rounded=True)

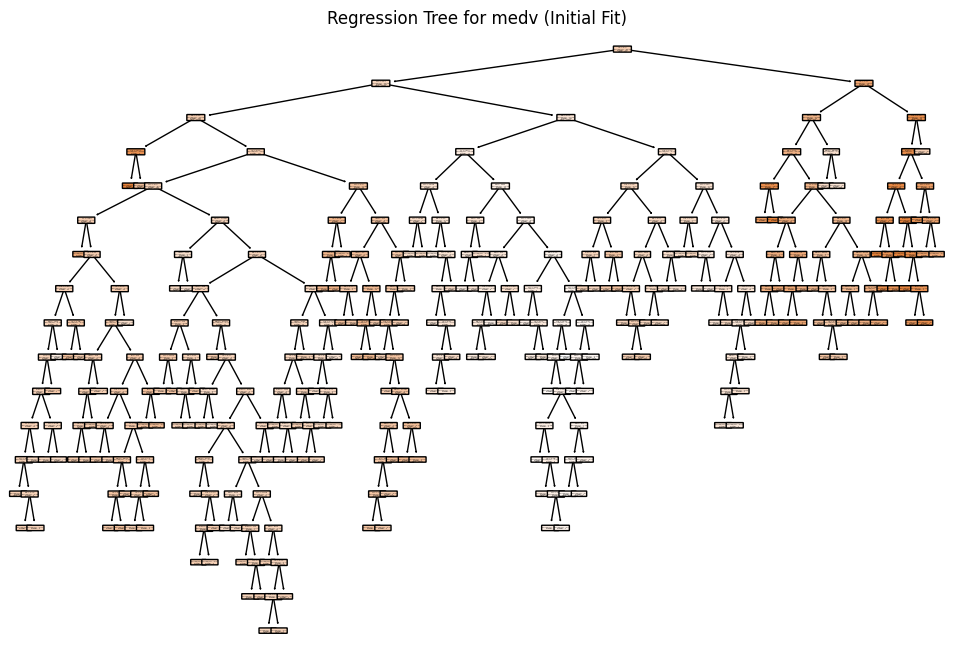

plt.title("Regression Tree for medv (Initial Fit)")
plt.show()
Training MSE: 0.250
Test MSE: 13.859

# In scikit-learn, we can use min_impurity_decrease=0.005 for a similar effect.
tree_model = DecisionTreeRegressor(max_depth=3, min_impurity_decrease=0.005, random_state=42)
# Fit the model using all predictors (all columns except 'medv')
tree_model.fit(X_train, y_train)

# Plot the initial regression tree
plt.figure(figsize=(9, 8), dpi = 300)
plot_tree(tree_model, feature_names=X_train.columns, filled=True, rounded=True)
plt.title("Regression Tree for medv (Initial Fit)")
plt.show()

Cross-Validation and Cost Complexity Pruning (CV Tree)

# Obtain the cost-complexity pruning path from the initial tree
path = tree_model.cost_complexity_pruning_path(X_train, y_train)  # Get candidate ccp_alpha values and corresponding impurities
ccp_alphas = path.ccp_alphas  # Candidate pruning parameters (alpha values)
impurities = path.impurities  # Impurity values at each candidate alpha

# Exclude the maximum alpha value to avoid the trivial tree (a tree with only the root)
ccp_alphas = ccp_alphas[:-1]  # Remove the last alpha value which would prune the tree to a single node

# Set up 10-fold cross-validation
kf = KFold(n_splits=10, shuffle=True, random_state=42)  # Initialize 10-fold CV with shuffling and fixed random state
cv_scores = []  # List to store mean cross-validated scores (negative MSE)
leaf_nodes = []  # List to record the number of leaves for each pruned tree
sse = []         # List to record the sum of squared errors (SSE) on the training set

# Loop over each candidate alpha value to evaluate its performance
for ccp_alpha in ccp_alphas:
    # Create a DecisionTreeRegressor with the current ccp_alpha and other specified parameters
    clf = DecisionTreeRegressor(random_state=42,
                                ccp_alpha=ccp_alpha,
                                min_impurity_decrease=0.005)

    # Perform 10-fold cross-validation and compute negative mean squared error (MSE)
    scores = cross_val_score(clf, X_train, y_train,
                             cv=kf, scoring="neg_mean_squared_error")
    cv_scores.append(np.mean(scores))  # Append the mean CV score for the current alpha

    # Fit the tree on the training data to record additional metrics
    clf.fit(X_train, y_train)
    leaf_nodes.append(clf.get_n_leaves())  # Record the number of leaf nodes in the tree

    # Compute SSE (sum of squared errors) on the training set
    preds = clf.predict(X_train)  # Predict target values on training data
    sse.append(np.sum((y_train - preds) ** 2))  # Calculate and record SSE for training set


# Select the best alpha based on the highest (least negative) mean CV score
best_alpha = ccp_alphas[np.argmax(cv_scores)]  # Identify the alpha with the best CV performance
print("Best alpha:", best_alpha)  # Print the best alpha value

# Train the final pruned tree using the best alpha found
final_tree = DecisionTreeRegressor(random_state=42,
                                   ccp_alpha=best_alpha,
                                   min_impurity_decrease=0.005)
final_tree.fit(X_train, y_train)  # Fit the final model on the training data
Best alpha: 0.2329619817674513
DecisionTreeRegressor(ccp_alpha=np.float64(0.2329619817674513),
                      min_impurity_decrease=0.005, random_state=42)
In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.
len(ccp_alphas)
146

Evaluate the Final Tree on the Test Data

preds = final_tree.predict(test.drop(columns=["medv"]))
mse = mean_squared_error(y_test, preds)
print("Test MSE:", mse)
Test MSE: 12.755442672992647

Prunned Tree

# Plot the pruned tree.
plt.figure(figsize=(16, 12), dpi=300)
plot_tree(final_tree, feature_names=X_train.columns, filled=True, rounded=True)
plt.title("Pruned Regression Tree for medv")
plt.show()

# Summary of the final tree
print("Number of leaves in the pruned tree:", final_tree.get_n_leaves())
print("Tree depth:", final_tree.get_depth())

Number of leaves in the pruned tree: 21
Tree depth: 6

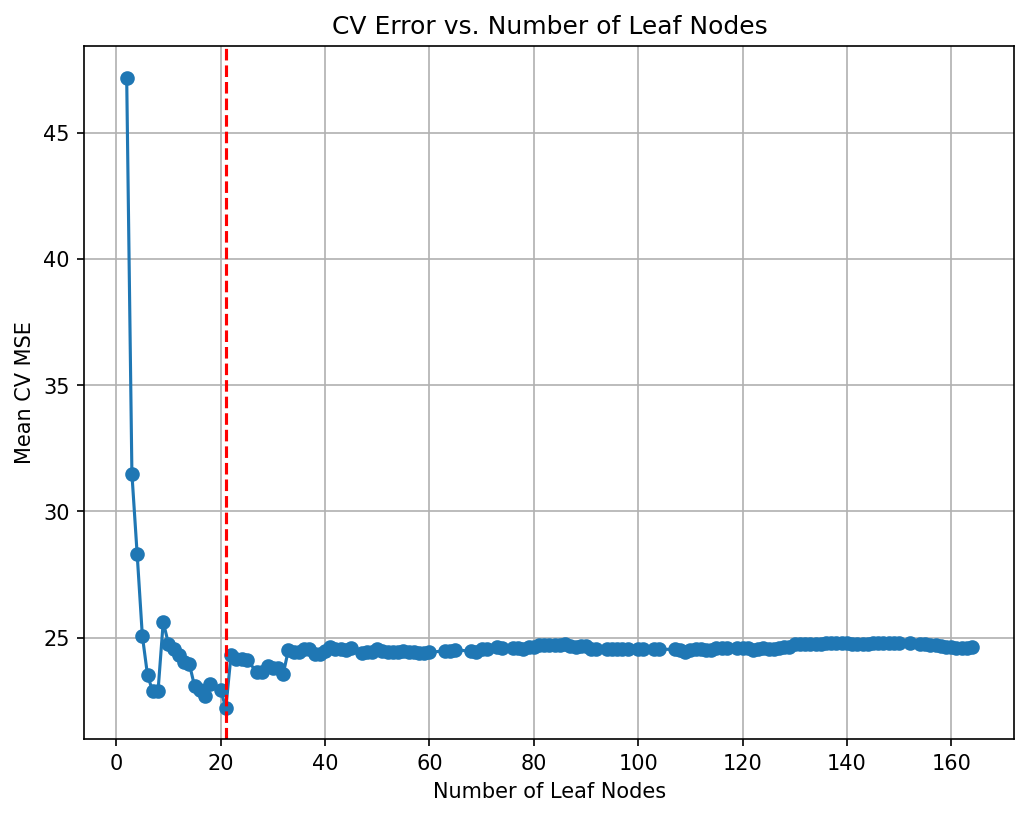

# Plot the average cross-validated MSE against the number of leaf nodes
negative_cv_scores = -np.array(cv_scores)

plt.figure(figsize=(8, 6), dpi=150)
plt.plot(leaf_nodes, negative_cv_scores, marker='o', linestyle='-')
plt.axvline(x=final_tree.get_n_leaves(), color='red', linestyle='--', label='Leaf Nodes = 21')  # Add vertical line at 21 leaf nodes
plt.xlabel("Number of Leaf Nodes")
plt.ylabel("Mean CV MSE")
plt.title("CV Error vs. Number of Leaf Nodes")
plt.grid(True)
plt.show()

# Plot the SSE on the training against the number of leaf nodes
plt.figure(figsize=(8, 6), dpi=150)
plt.plot(leaf_nodes, sse, marker='o', linestyle='-')
plt.xlabel("Number of Leaf Nodes")
plt.ylabel("SSE")
plt.title("SSE vs. Number of Leaf Nodes")
plt.grid(True)
plt.show()

Random Forest

# Suppose df is your dataset and 'medv' is the response variable.
# Split into training and testing sets (similar to the R code)
X = boston.drop(columns=["medv"])   # All predictors
y = boston["medv"]
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.20, random_state=42)

# Build the Random Forest model
# max_features=13 means that at each split the algorithm randomly considers 13 predictors.
rf = RandomForestRegressor(max_features=5,  # Use 13 features at each split
                           n_estimators=500,  # Number of trees in the forest
                           random_state=42,
                           oob_score=True)    # Use out-of-bag samples to estimate error
rf.fit(X_train, y_train)


# Print the model details
print("Random Forest Model:")
print(rf)

# Output the model details (feature importances, OOB score, etc.)
print("Out-of-bag score:", rf.oob_score_)  # A rough estimate of generalization error


# Generate predictions on training and testing sets
y_train_pred = rf.predict(X_train)
y_test_pred = rf.predict(X_test)

# Calculate Mean Squared Errors (MSE) for both sets
train_mse = mean_squared_error(y_train, y_train_pred)
test_mse = mean_squared_error(y_test, y_test_pred)
print("Train MSE:", train_mse)
print("Test MSE:", test_mse)

# Optional: Plot predicted vs. observed values for test data
# plt.figure(figsize=(8,6), dpi=300)
# plt.scatter(y_test, y_test_pred, alpha=0.7)
# plt.plot([min(y_test), max(y_test)], [min(y_test), max(y_test)], 'r--')
# plt.xlabel("Observed medv")
# plt.ylabel("Predicted medv")
# plt.title("Random Forest: Observed vs. Predicted Values")
# plt.show()
Random Forest Model:
RandomForestRegressor(max_features=5, n_estimators=500, oob_score=True,
                      random_state=42)
Out-of-bag score: 0.864624851178444
Train MSE: 1.586040475049504
Test MSE: 9.365789512941221
# Define the grid of hyperparameters:
# - min_samples_leaf is the minimum number of samples in a terminal node.
param_grid = {
    "max_features": list(range(3, 15, 2)),
    "min_samples_leaf": [5]
}

# Initialize the RandomForestRegressor:
# - n_estimators is set to 50 (equivalent to num.trees)
# - random_state is set for reproducibility.
# rf = RandomForestRegressor(n_estimators=50, random_state=1917)

rf = RandomForestRegressor(n_estimators=500,  # Number of trees in the forest
                           random_state=42,
                           oob_score=True)    # Use out-of-bag samples to estimate error

# Set up 10-fold cross-validation and GridSearch over the parameters
grid_search = GridSearchCV(
    estimator=rf,
    param_grid=param_grid,
    cv=10,
    scoring="neg_mean_squared_error",
    return_train_score=True,
    n_jobs=-1,
    verbose=1
)

# Fit the grid search on the data
grid_search.fit(X_train, y_train)

# Extract the best parameters
print("Best Parameters:", grid_search.best_params_)

# To replicate the ggplot visualization from R, we plot the grid search results.
results = pd.DataFrame(grid_search.cv_results_)

plt.figure(figsize=(8, 6))
plt.errorbar(
    results["param_max_features"].astype(int),
    -results["mean_test_score"],
    yerr=results["std_test_score"],
    fmt="o-",
    capsize=5
)
plt.title("Grid Search CV Results")
plt.xlabel("max_features (mtry equivalent)")
plt.ylabel("Mean Squared Error")
plt.grid(True)
plt.show()

Fitting 10 folds for each of 6 candidates, totalling 60 fits
Best Parameters: {'max_features': 7, 'min_samples_leaf': 5}

Variable Importance

# Get feature importances from the model (equivalent to importance(bag.boston) in R)
importances = rf.feature_importances_
feature_names = X_train.columns

print("Variable Importances:")
for name, imp in zip(feature_names, importances):
    print(f"{name}: {imp:.4f}")

# Plot the feature importances, similar to varImpPlot(bag.boston) in R
# Sort the features by importance for a nicer plot.
indices = np.argsort(importances)[::-1]

plt.figure(figsize=(10, 6), dpi=150)
plt.title("Variable Importances")
plt.bar(range(len(feature_names)), importances[indices], align='center')
plt.xticks(range(len(feature_names)), feature_names[indices], rotation=90)
plt.xlabel("Variables")
plt.ylabel("Importance")
plt.tight_layout()
plt.show()
Variable Importances:
crim: 0.0609
zn: 0.0039
indus: 0.0468
chas: 0.0063
nox: 0.0549
rm: 0.3493
age: 0.0236
dis: 0.0560
rad: 0.0080
tax: 0.0266
ptratio: 0.0569
black: 0.0177
lstat: 0.2892

PartialDependenceDisplay.from_estimator(rf, X_train, ['rm'], kind='both')
NameError: name 'PartialDependenceDisplay' is not defined

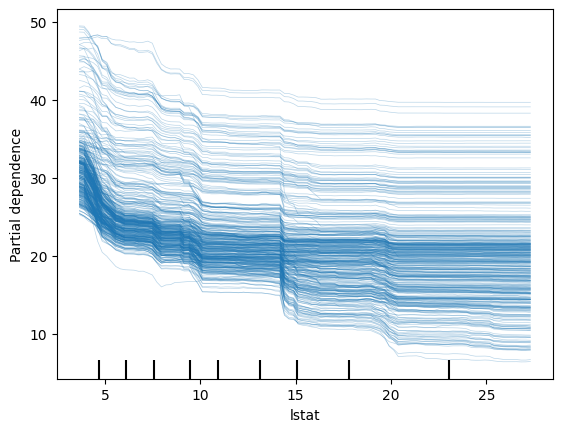

PartialDependenceDisplay.from_estimator(rf, X_train, ['lstat'], kind='individual')
<sklearn.inspection._plot.partial_dependence.PartialDependenceDisplay at 0x7b1287765790>

disp = PartialDependenceDisplay.from_estimator(rf, X_train, ['lstat'], kind='both')

# Access the line representing the average PDP (it's typically the last Line2D object)
# and change its color manually
for ax in disp.axes_.ravel():
    lines = ax.get_lines()
    if lines:  # In case the axis has line objects
        # The last line is usually the average PDP
        pdp_line = lines[-1]
        pdp_line.set_color("red")  # Change to any color you like

plt.show()

disp = PartialDependenceDisplay.from_estimator(rf, X_train, ['crim'], kind='both')

# Access the line representing the average PDP (it's typically the last Line2D object)
# and change its color manually
for ax in disp.axes_.ravel():
    lines = ax.get_lines()
    if lines:  # In case the axis has line objects
        # The last line is usually the average PDP
        pdp_line = lines[-1]
        pdp_line.set_color("red")  # Change to any color you like

plt.show()

Gradient Boosting

# Define the grid of hyperparameters
param_grid = {
    "n_estimators": list(range(20, 201, 20)),  # nrounds: 20, 40, ..., 200
    "learning_rate": [0.025, 0.05, 0.1, 0.3],  # eta
    "gamma": [0],                              # gamma
    "max_depth": [1, 2, 3, 4],
    "colsample_bytree": [1],
    "min_child_weight": [1],
    "subsample": [1]
}

# Initialize the XGBRegressor with the regression objective and fixed random state for reproducibility
xgb_reg = XGBRegressor(objective="reg:squarederror", random_state=1937, verbosity=1)

# Set up GridSearchCV with 10-fold cross-validation; scoring is negative MSE
grid_search = GridSearchCV(
    estimator=xgb_reg,
    param_grid=param_grid,
    scoring="neg_mean_squared_error",
    cv=10,
    verbose=1  # Adjust verbosity as needed
)

# Fit the grid search
grid_search.fit(X_train, y_train)

# Train the final model using the best parameters (grid_search.best_estimator_ is already refit on entire data)
final_model = grid_search.best_estimator_

# Plot variable importance using XGBoost's plot_importance function

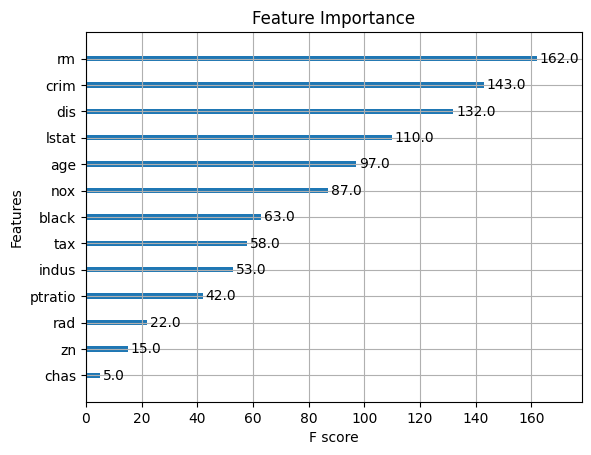

plt.figure(figsize=(10, 8))
plot_importance(final_model)
plt.title("Variable Importance")
plt.show()

# Calculate MSE on the test data
y_pred = final_model.predict(X_test)
test_mse = mean_squared_error(y_test, y_pred)
print("Test MSE:", test_mse)

# Print the best parameters found by GridSearchCV
best_params = grid_search.best_params_
print("Best parameters:", best_params)
Fitting 10 folds for each of 160 candidates, totalling 1600 fits
Test MSE: 8.542297394900933
Best parameters: {'colsample_bytree': 1, 'gamma': 0, 'learning_rate': 0.1, 'max_depth': 3, 'min_child_weight': 1, 'n_estimators': 160, 'subsample': 1}
<Figure size 1000x800 with 0 Axes>

Back to top
